CSC477 Introduction to Mobile Robotics

Week #10: Extended Kalman Filter

Florian Shkurti

Kalman Filter: an instance of Bayes’ Filter

\[\begin{align}bel(x_t) &= p(x_t|u_{0:t-1}, z_{0:t}) \\ &= \eta p(z_t|x_t) \int p(x_t|u_{t-1}, x_{t-1}) bel(x_{t-1}) dx_{t-1}\end{align}\]

\[\begin{align}z_t = & Hx_t + n_t \\ & \text{with noise } n_t \sim \mathcal{N}(0, R)\end{align}\]

\[\begin{align} x_t &= Ax_{t-1} + Bu_{t-1} + Gw_{t-1} \\ & \text{with noise } w_{t-1} \sim N(0,Q) \end{align}\]

\(\qquad bel(x_0) \sim \mathcal{N}(\mu_0, \Sigma_0)\)

Kalman Filter: an instance of Bayes’ Filter

\[\begin{align}bel(x_t) &= p(x_t|u_{0:t-1}, z_{0:t}) \\ &= \eta p(z_t|x_t) \int p(x_t|u_{t-1}, x_{t-1}) bel(x_{t-1}) dx_{t-1}\end{align}\]

\[\begin{align}z_t = & h(x_t) + n_t \\ & \text{with noise } n_t \sim \mathcal{N}(0, R)\end{align}\]

\[\begin{align} x_t &= f(x_{t-1}, u_{t-1}) + Gw_{t-1} \\ & \text{with noise } w_{t-1} \sim N(0,Q) \end{align}\]

\(\qquad bel(x_0) \sim \mathcal{N}(\mu_0, \Sigma_0)\)

Suppose you replace
the linear models with
nonlinear models.

Does the posterior
\(\color{black}bel(x_t)\) remain
Gaussian?

\(\qquad\)

Kalman Filter: an instance of Bayes’ Filter

\[\begin{align}bel(x_t) &= p(x_t|u_{0:t-1}, z_{0:t}) \\ &= \eta p(z_t|x_t) \int p(x_t|u_{t-1}, x_{t-1}) bel(x_{t-1}) dx_{t-1}\end{align}\]

\[\begin{align}z_t = & h(x_t) + n_t \\ & \text{with noise } n_t \sim \mathcal{N}(0, R)\end{align}\]

\[\begin{align} x_t &= f(x_{t-1}, u_{t-1}) + Gw_{t-1} \\ & \text{with noise } w_{t-1} \sim N(0,Q) \end{align}\]

\(\qquad bel(x_0) \sim \mathcal{N}(\mu_0, \Sigma_0)\)

Suppose you replace
the linear models with
nonlinear models.

Does the posterior
\(\color{black}bel(x_t)\) remain
Gaussian? NO

\(\qquad\)

Linearity Assumption Revisited

If \(y = ax + b\)

and \(x \sim \mathcal{N}(\mu, \sigma^2)\)

then \(y \sim \mathcal{N}(a\mu + b, a^2\sigma^2)\)

Nonlinear Function

If \(y = g(x)\)

and \(x \sim \mathcal{N}(\mu, \sigma^2)\)

then y is not necessarily

distributed as a Gaussian.

How can we approximate p(y) using a single Gaussian, without having a
formula for p(y)?

IDEA #1: MONTE CARLO SAMPLING
- Draw many (e.g. 10^6) samples xi ~ p(x)
- Pass them through the nonlinear function yi = g(xi)
- Compute the empirical mean (m) and covariance (S) of the samples yi
- Return Normal(m, S)

IDEA #2: LINEARIZE THE NONLINEAR FUNCTIONS f, h
- Then we are in the case y = Gx +c, so p(y) is a Gaussian

Nonlinear Function

If \(y = g(x)\)

and \(x \sim \mathcal{N}(\mu, \sigma^2)\)

then y is not necessarily

distributed as a Gaussian.

How can we approximate p(y) using a single Gaussian, without having a
formula for p(y)?

IDEA #2: LINEARIZE THE NONLINEAR FUNCTIONS f, h
- Then we are in the case y = Gx +c, so p(y) is a Gaussian

Linearization

Notice how the Linearization
approximation differs from the
Monte Carlo approximation (which
is better, provided sufficiently many
samples).

That said, the Linearization approximation
can be computed efficiently, and can be
integrated into the Kalman
Filter estimator \(\rightarrow\) Extended Kalman Filter

Linearization with low approximation error

The quality of the linearization
approximation depends on the uncertainty
of p(x) but also on the shape of the nonlinearity
g(x).

In this example p(x) has small variance so
most points will be concentrated around 0.5 and
will pass through a very small region of g(x), where
g(x) is close to linear.

In this case p(y) is nearly Gaussian,
and the Linearization approximation
matches the Monte Carlo approximation.

Linearization with high approximation error

The quality of the linearization
approximation depends on the
uncertainty of p(x) but also on
the shape of the nonlinearity g(x).

In this example p(x) has high
variance so points g(x) will be
spread out around g(0.5), where
g(x) is not close to linear.

In this case p(y) is multimodal,
and the Linearization approximation
matches the Monte Carlo approximation
are both suboptimal approximations.
Again Monte Carlo is better, provided
sufficient samples.

How do we linearize?

Using the first order Taylor expansion around the mean of the previous update step’s state estimate:

\[\begin{align*} x_{t+1} &= f(x_t, u_t) + w_t \\ &\approx f(\mu_{t|t}, u_t) + \frac{\partial f}{\partial x}(\mu_{t|t}, u_t)(x_t - \mu_{t|t}) + w_t \\ &= f(\mu_{t|t}, u_t) + F_t(x_t - \mu_{t|t}) + w_t \\ &= F_t x_t + \color{red}\boxed{\color{black}f(\mu_{t|t}, u_t) - F_t \mu_{t|t}} \color{black} + w_t \\ &= F_t x_t + \bar{u}_t + w_t \end{align*}\]

Recall how to compute the Jacobian matrix. For example, if

\(f(x_{1},x_{2},u)=[x_{1}+x_{2}^{2},x_{2}+3u,x_{1}^{4}-u^{2}]\in\mathbb{R}^{3}\)

then the Jacobian of f with respect to \(\color{black}(x_1, x_2)\) at \(\color{black}(u_1, u_2, u)\) is

\[\begin{align} \frac{\partial f}{\partial x_{1:2}}(\mu_1, \mu_2, u_1) &= \begin{bmatrix} \frac{\partial f_1}{\partial x_1} & \frac{\partial f_1}{\partial x_2} \\ \frac{\partial f_2}{\partial x_1} & \frac{\partial f_2}{\partial x_2} \\ \frac{\partial f_3}{\partial x_1} & \frac{\partial f_3}{\partial x_2} \end {bmatrix} (\mu_1, \mu_2, u_1) \\ &= \begin{bmatrix} 1 & 2\mu_2 \\ 0 & 1 \\ 4\mu_1^3 & 0 \end{bmatrix} \end{align}\]

How do we linearize?

Using the first-order Taylor expansion around the mean of the previous prediction step’s state estimate:

\[\begin{align*} z_{t+1} &= h(x_{t+1}) + n_{t+1} \\ &\approx h(\mu_{t+1|t}) + \frac{\partial h}{\partial x}(\mu_{t+1|t})(x_t - \mu_{t+1|t}) + n_{t+1} \\ &= h(\mu_{t+1|t}) + H_{t+1}(x_{t+1} - \mu_{t+1|t}) + n_{t+1} \\ &= H_{t+1}x_{t+1} + \color{red}\boxed{\color{black}h(\mu_{t+1|t}) - H_{t+1}\mu_{t+1|t}} \color{black} + n_{t+1} \\ &= H_{t+1}x_{t+1} + \bar{c}_{t+1} + n_{t+1} \end{align*}\]

Recall how to compute the Jacobian matrix. For example, if

\(h(x_{1},x_{2}) = [x_{1}+x_{2}^{2}, x_{2}, x_{1}^{4}] \in \mathbb{R}^{3}\)

then the Jacobian of f with respect to \(\color{black}(x_1, x_2)\) at \(\color{black}(u_1, u_2)\) is

\[\begin{align} \frac{\partial h}{\partial x_{1:2}}(\mu_1, \mu_2) &= \begin{bmatrix} \frac{\partial h_1}{\partial x_1} & \frac{\partial h_1}{\partial x_2} \\ \frac{\partial h_2}{\partial x_1} & \frac{\partial h_2}{\partial x_2} \\ \frac{\partial h_3}{\partial x_1} & \frac{\partial h_3}{\partial x_2} \end {bmatrix} (\mu_1, \mu_2) \\ &= \begin{bmatrix} 1 & 2\mu_2 \\ 0 & 1 \\ 4\mu_1^3 & 0 \end{bmatrix} \end{align}\]

Extended Kalman Filter: an instance of Bayes’ Filter

\[\begin{align}bel(x_t) &= p(x_t|u_{0:t-1}, z_{0:t}) \\ &= \eta p(z_t|x_t) \int p(x_t|u_{t-1}, x_{t-1}) bel(x_{t-1}) dx_{t-1}\end{align}\]

\[\begin{align} z_t = & H x_t + \bar{c}_t + n_t \\ & \text{with noise } n_t \sim \mathcal{N}(0, R) \end{align}\]

\[\begin{align} \qquad x_t = & F_{t-1}x_{t-1} + \bar{u}_{t-1} + Gw_{t-1} \\ & \text{with noise } w_{t-1} \sim \mathcal{N}(0, Q) \end{align}\]

\(\qquad bel(x_0) \sim \mathcal{N}(\mu_0, \Sigma_0)\)

\(\qquad\quad\) EKF in N dimensions

Dynamics

\(x_{t+1} = f(x_{t},u_{t})+Gw_{t}\)
\(w_{t} \sim \mathcal{N}(0, Q)\)

Measurements

\(z_t = h(x_t) + n_t\)
\(n_t \sim \mathcal{N}(0, R)\)

Init \[bel(x_0) \sim \mathcal{N}(\mu_{0|0}, \Sigma_{0|0})\]

Prediction Step \[\mu_{t+1|t} = f(\mu_{t |t}, \mu_t)\] \[\Sigma_{t+1|t} = F_t\Sigma_{t|t}F^T_t + GQG^T\]

Update Step

Received measurement \(\bar{z}_{t+1}\) but expected to receive \(\mu_{z_{t+1}} = h(\mu_{t+1|t})\)

Prediction residual is a Gaussian random variable \(\delta z \sim \mathcal{N}(\bar{z}_{t+1} - \mu_{z_{t+1}}, S_{t+1})\)
where the covariance of the residual is \(S_{t+1} = H_{t+1}\Sigma_{t+1|t}H^T_{t+1} + R\)

Kalman Gain (optimal correction factor): \(K_{t+1}=\Sigma_{t+1|t}H_{t+1}^{T}S_{t+1}^{-1}\)

\[\mu_{t+1|t+1}=\mu_{t+1|t}+K_{t+1}(\bar{z}_{t+1}-\mu_{z_{t+1}})\]

\[\Sigma_{t+1|t+1}=\Sigma_{t+1|t}-K_{t+1}H_{t+1}\Sigma_{t+1|t}\]

EKF Summary

Efficient : Polynomial in measurement dimensionality k and state dimensionality n: \[O(k^{2.376} + n^2)\]
Not optimal (unlike the Kalman Filter for linear systems)
Can diverge if nonlinearities are large
Works surprisingly well even when all assumptions are violated

As in KF, inverting
the covariance of the
residual is O(k^2.376)

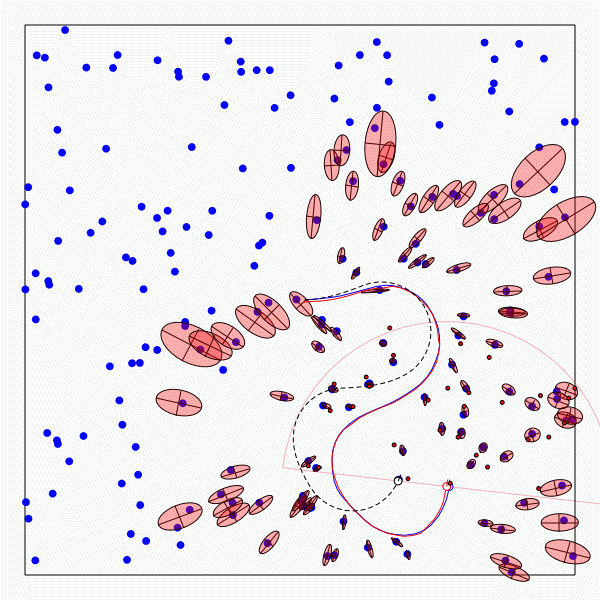

Example #1: EKF-Localization

“Using sensory information to locate the robot in its environment is the most fundamental problem to providing a mobile robot with autonomous capabilities.” [Cox ’91]

Given
- Map of the environment.
- Sequence of sensor measurements.
Wanted
- Estimate of the robot’s position.
Problem classes
- Position tracking
- Global localization
- Kidnapped robot problem (recovery)

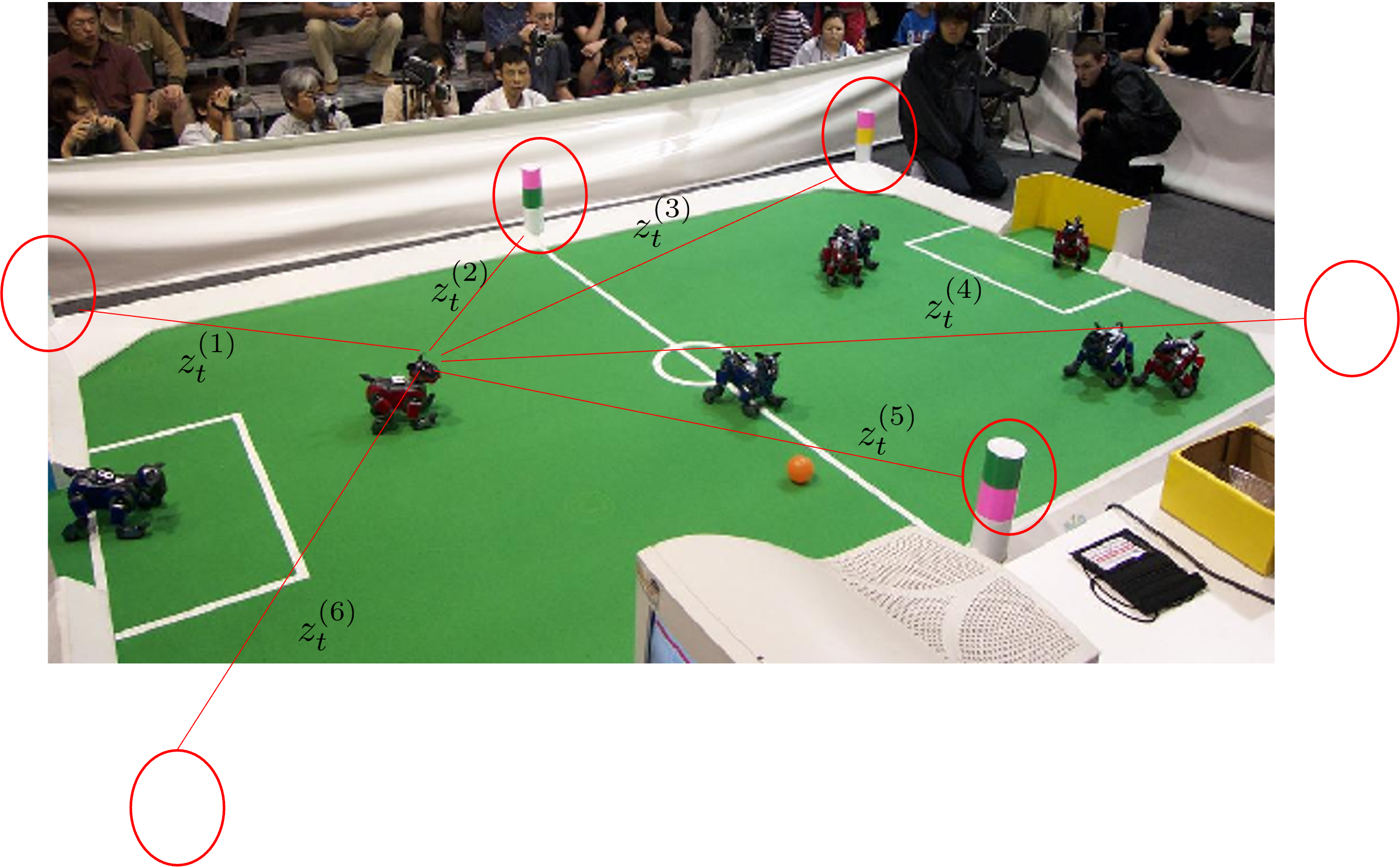

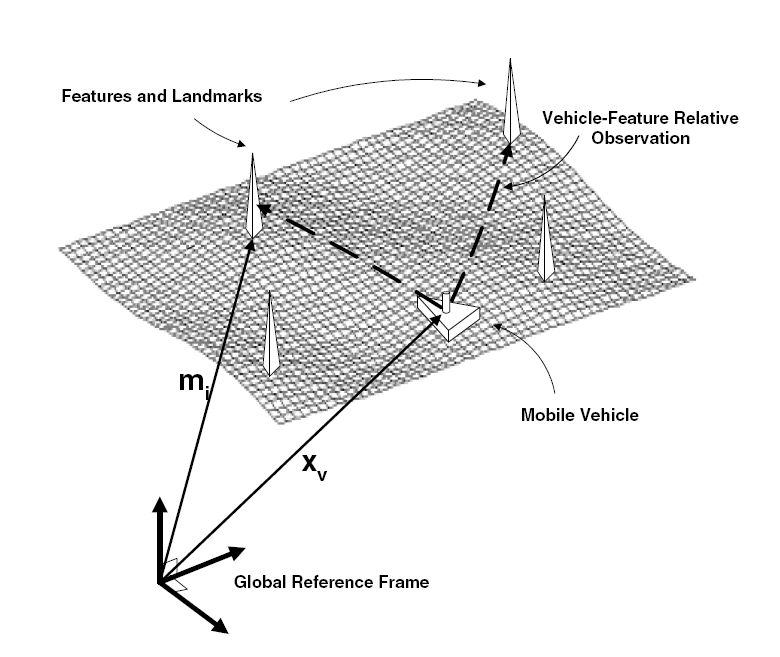

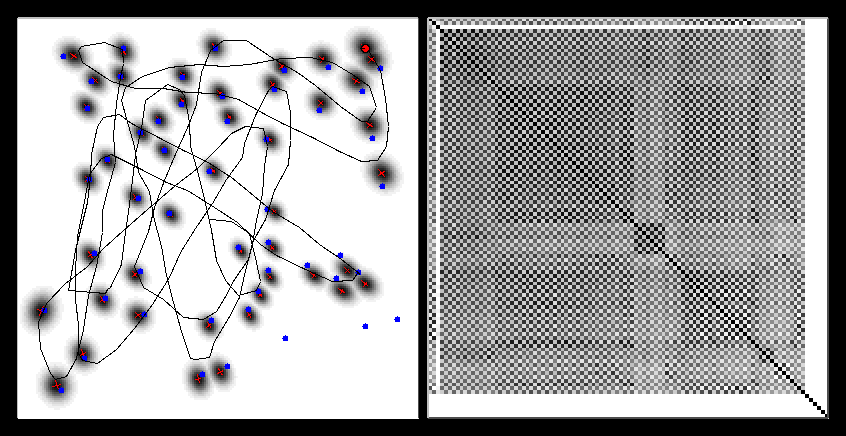

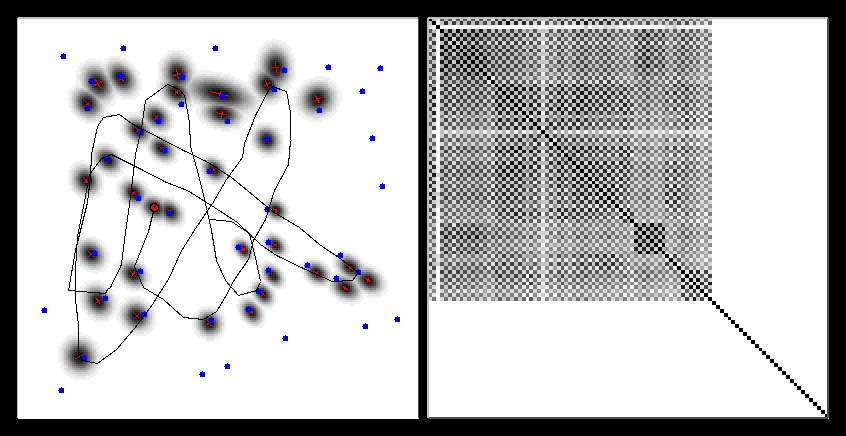

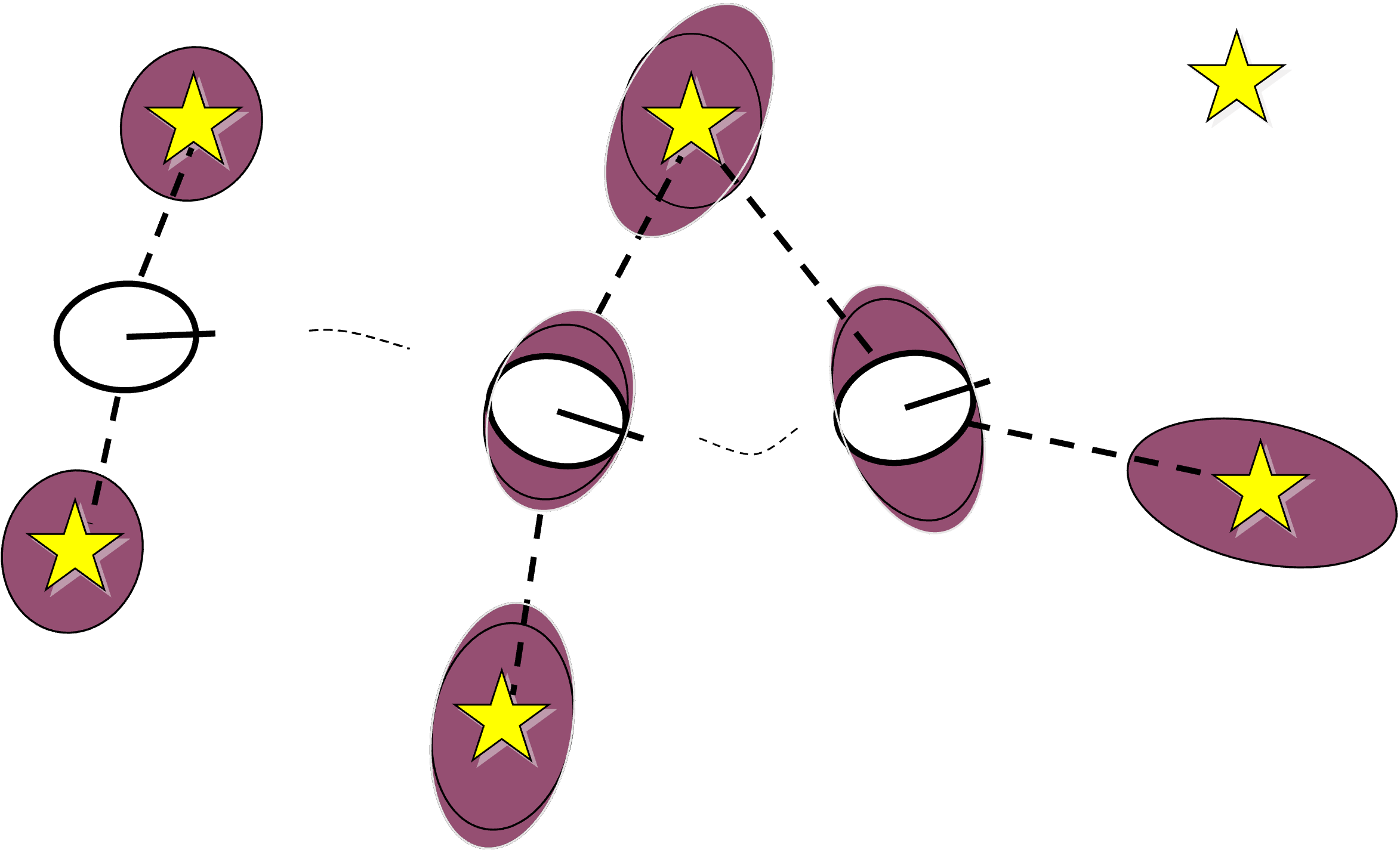

Landmark-based Localization

Landmarks, whose
position \(\color{black}(l_{x}^{(i)}, l_{y}^{(i)})\)
in the world is known.

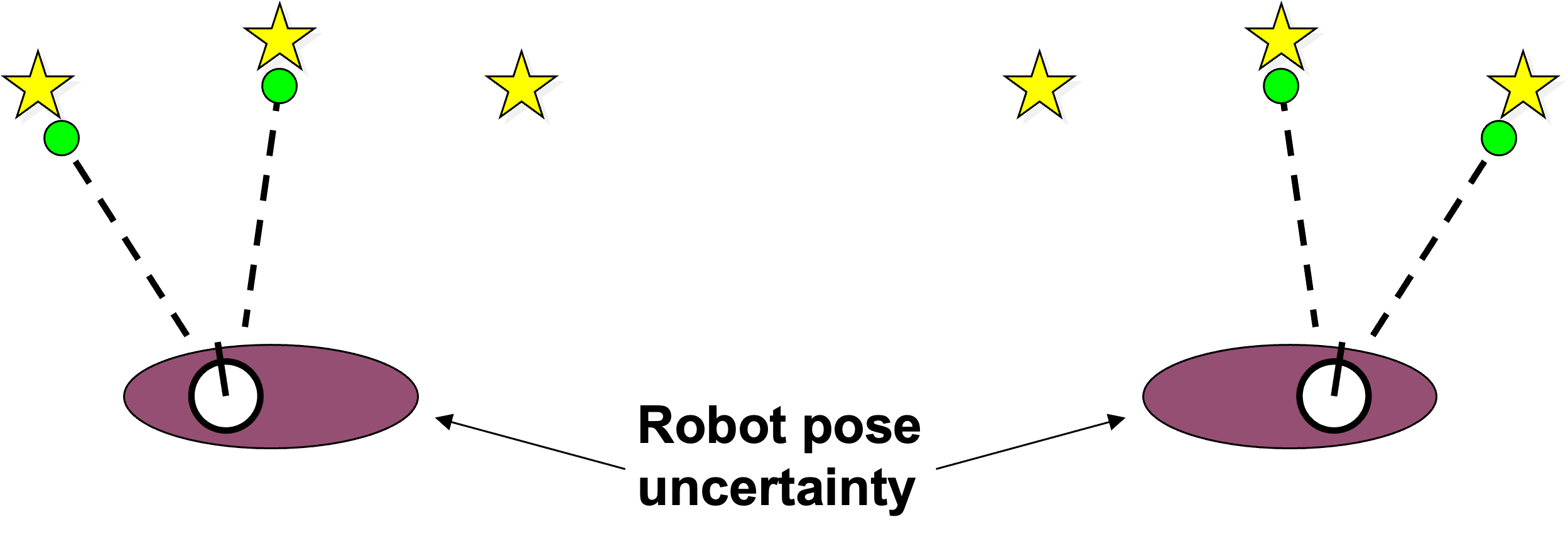

Each robot measures
its range and bearing
from each landmark
to localize itself.

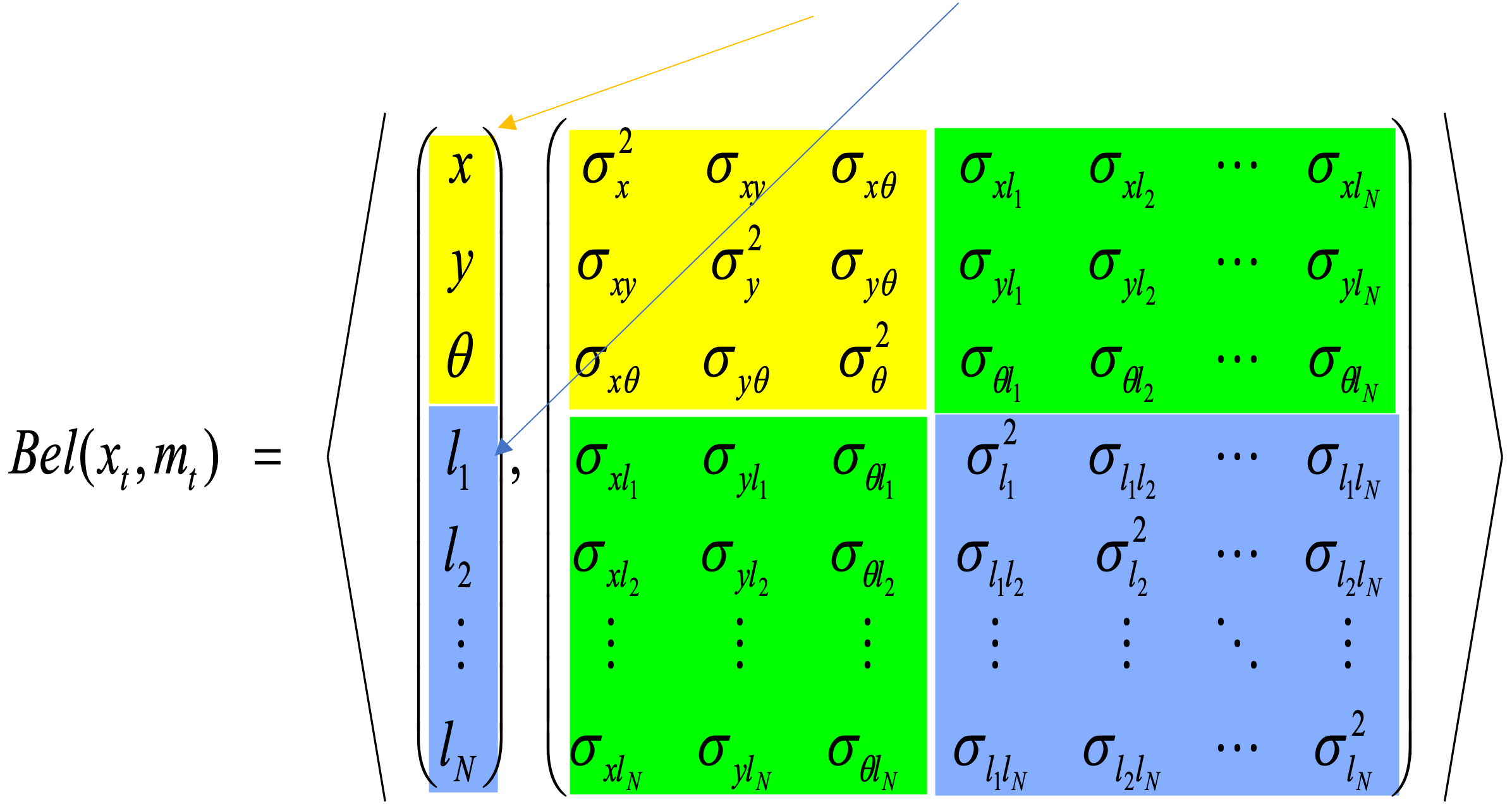

State of a robot:

\(\color{black} x_{t} = \begin{bmatrix} p_{x}(t) \\ p_{y}(t) \\ \theta(t) \end{bmatrix}\)

Landmark-based Localization

Measurement at time t,
\(\color{black}z_t = \begin{bmatrix} \dots \\ z_t^{(i)} \\ \dots \end{bmatrix}\)

is a variable-sized
vector, depending on the
landmarks that are
visible at time t.

Each measurement is
a 2D vector, containing
range and bearing from
the robot to a landmark.

\[z_t^{(i)} = h_i(x_t) = \left[ \begin{pmatrix} \sqrt{(p_x(t)-l_x^{(i)})^2 + (p_y(t)-l_y^{(i)})^2} \\ \text{atan2}(p_y(t)-l_y^{(i)}, p_x(t)-l_x^{(i)})-\theta(t) \end{pmatrix} \right] + n_t\]
